TumorBoost - Normalization of allelic-specific copy numbers in tumors with matched normals

Author: Pierre Neuvial

Created: 2010-05-30
Modified: 2010-06-08

Introduction

This vignette illustrates the TumorBoost method for normalizing allelic ratios from genotyping microarrays, which is described in  Bengtsson et al. (2010).  The input of the method is a single tumor-normal pair of allelic ratios from genotyping microarrays.





Figure: Allele B fractions before and after TumorBoost normalization.
totalAndFracBData/
  TCGA,GBM,BeadStudio,XY/
    HumanHap550/
      TCGA-02-0001-01C-01D-0184-06,fracB.asb
      TCGA-02-0001-01C-01D-0184-06,total.asb
      TCGA-02-0001-10A-01D-0184-06,fracB.asb
      TCGA-02-0001-10A-01D-0184-06,total.asb
  TCGA,GBM,CRMAv2/
    GenomeWideSNP/
      TCGA-02-0001-01C-01D-0182-01,fracB.asb
      TCGA-02-0001-01C-01D-0182-01,total.asb
      TCGA-02-0001-10A-01D-0182-01,fracB.asb
      TCGA-02-0001-10A-01D-0182-01,total.asb

callData/
  TCGA,GBM,BeadStudio,XY,NGC/
    HumanHap550/
        TCGA-02-0001,10A,01D-0184-06,genotypes,confidenceScores.acf
        TCGA-02-0001,10A,01D-0184-06,genotypes.acf

annotationData/
  chipTypes/
    HumanHap550/
      HumanHap550,TCGA,HB20080512.ugp
      HumanHap550,TCGA,HB20100107,unitNames.txt
    GenomeWideSNP_6/
      GenomeWideSNP_6,Full.CDF
      GenomeWideSNP_6,Full,na26,HB20080821.ugp

Note: In the above data sets, files corresponding to both allelic ratios ('fracB') and total intensities ('total') are listed.  Total intensities are only used at the end of this vignette to display total copy number profiles. Total intensities are not used for TumorBoost normalization, and total copy numbers are not affected by TumorBoost normalization.

Input data: genotype calls

To normalize a tumor sample, TumorBoost uses genotype calls (and optionally genotype confidence scores) of the matched normal sample.  In this vignette we assume that such genotype calls are available to us (see 'callData' above). In the vignette 'Naive genotype calls and associated confidence scores' we show how such genotype calls can be estimated only based on allelic ratios in the normal sample, as described in the TumorBoost paper.

To use other genotype calls than the naive ones, a data set with similar structure as above has to be created, for example:

callData/
  TCGA,GBM,BeadStudio,XY,BeadStudio/
    HumanHap550/
        TCGA-02-0001,10A,01D-0184-06,genotypes,confidenceScores.acf
        TCGA-02-0001,10A,01D-0184-06,genotypes.acf

The creation of such a data set depends on the input data (Birdseed or BeadStudio genotypes for example).  It is not documented here.

Input data: allelic ratios

For Affymetrix genotyping microarrays, input data can be obtained using the CRMA v2 method  (Bengtsson et al. 2009), e.g.

ds <- doASCRMAv2("TCGA,GBM", chipType="GenomeWideSNP_6,Full");
See CRMA v2 block and CRMA v2 vignette for details.



Setup



library("aroma.cn");
log <- verbose <- Arguments$getVerbose(-8, timestamp=TRUE);
rootPath <- "totalAndFracBData";
rootPath <- Arguments$getReadablePath(rootPath);
dataSets <- c("TCGA,GBM,BeadStudio,XY", "TCGA,GBM,CRMAv2");

dataSet <- dataSets[1]; ## Work with Illumina data

# Fullnames translator
fnt <- function(names, ...) {
  pattern <- "^(TCGA-[0-9]{2}-[0-9]{4})-([0-9]{2}[A-Z])[-]*(.*)";
  gsub(pattern, "\\1,\\2,\\3", names);
} # fnt()

Load the raw (tumor,normal) data set

# - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
# Load the raw (tumor,normal) data set
# - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
ds <- AromaUnitFracBCnBinarySet$byName(dataSet, chipType="*", paths=rootPath);
setFullNamesTranslator(ds, fnt);
print(ds);

sampleNames <- sort(unique(getNames(ds)));
sampleName <- sampleNames[1];

pair <- indexOf(ds, sampleName);
stopifnot(length(pair) == 2);

# Order as (tumor,normal)
types <- sapply(extract(ds,pair), FUN=function(df) getTags(df)[1]);
o <- order(types);
types <- types[o];
pair <- pair[o];

# Extract (tumor, normal) pair
dsPair <- extract(ds, pair);
dsT <- extract(dsPair, 1);
print(dsT);
This gives:

AromaUnitFracBCnBinarySet:
Name: TCGA
Tags: GBM,BeadStudio,XY
Full name: TCGA,GBM,BeadStudio,XY
Number of files: 1
Names: TCGA-02-0001 [1]
Path (to the first file): totalAndFracBData/TCGA,GBM,BeadStudio,XY/HumanHap550
Total file size: 2.14 MB
RAM: 0.00MB

dsN <- extract(dsPair, 2);
print(dsN);
This gives:

AromaUnitFracBCnBinarySet:
Name: TCGA
Tags: GBM,BeadStudio,XY
Full name: TCGA,GBM,BeadStudio,XY
Number of files: 1
Names: TCGA-02-0001 [1]
Path (to the first file): totalAndFracBData/TCGA,GBM,BeadStudio,XY/HumanHap550
Total file size: 2.14 MB
RAM: 0.00MB

Load the genotype call set

# - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
# Load the genotype call set
# - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
# Identify available genotype calls
rootPath <- "callData";
rootPath <- Arguments$getReadablePath(rootPath);

genotypeTag <- "NGC";
gsN <- AromaUnitGenotypeCallSet$byName(dataSet, tags=genotypeTag, chipType="*");
setFullNamesTranslator(gsN, fnt);

# Keep only normal genotype files (not needed here, but could be needed in other situations)
types <- sapply(gsN, FUN=function(df) getTags(df)[1]);
types <- gsub("[A-Z]$", "", types);
keep <- which(is.element(types, c("10", "11")));
gsN <- extract(gsN, keep);
print(gsN);
This gives:

AromaUnitGenotypeCallSet:
Name: TCGA
Tags: GBM,BeadStudio,XY,NGC
Full name: TCGA,GBM,BeadStudio,XY,NGC
Number of files: 1
Names: TCGA-02-0001 [1]
Path (to the first file): callData/TCGA,GBM,BeadStudio,XY,NGC/HumanHap550
Total file size: 1.07 MB
RAM: 0.00MB

Apply TumorBoost normalization

# - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
# Create a list of matched data sets
# - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
dsList <- list(normal=dsN, tumor=dsT, callsN=gsN);
dsList <- lapply(dsList, FUN=function(ds) {
  idxs <- indexOf(ds, getNames(dsList$normal));
  extract(ds, idxs);
});
print(dsList);
This gives:

$normal
AromaUnitFracBCnBinarySet:
Name: TCGA
Tags: GBM,BeadStudio,XY
Full name: TCGA,GBM,BeadStudio,XY
Number of files: 1
Names: TCGA-02-0001 [1]
Path (to the first file): totalAndFracBData/TCGA,GBM,BeadStudio,XY/HumanHap550
Total file size: 2.14 MB
RAM: 0.00MB

$tumor
AromaUnitFracBCnBinarySet:
Name: TCGA
Tags: GBM,BeadStudio,XY
Full name: TCGA,GBM,BeadStudio,XY
Number of files: 1
Names: TCGA-02-0001 [1]
Path (to the first file): totalAndFracBData/TCGA,GBM,BeadStudio,XY/HumanHap550
Total file size: 2.14 MB
RAM: 0.00MB

$callsN
AromaUnitGenotypeCallSet:
Name: TCGA
Tags: GBM,BeadStudio,XY,NGC
Full name: TCGA,GBM,BeadStudio,XY,NGC
Number of files: 1
Names: TCGA-02-0001 [1]
Path (to the first file): callData/TCGA,GBM,BeadStudio,XY,NGC/HumanHap550
Total file size: 1.07 MB
RAM: 0.00MB

dummy <- lapply(dsList, FUN=function(ds) print(getFile(ds,1)));

# - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
# Normalize allele B fractions for tumors given matched normals
# - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
tbn <- TumorBoostNormalization(dsList$tumor, dsList$normal, gcN=dsList$callsN, tags=c("*", "NGC"));
dsTN <- process(tbn, verbose=log);
setFullNamesTranslator(dsTN, fnt);
print(dsTN);
This gives:

AromaUnitFracBCnBinarySet:
Name: TCGA
Tags: GBM,BeadStudio,XY,TBN,NGC
Full name: TCGA,GBM,BeadStudio,XY,TBN,NGC
Number of files: 1
Names: TCGA-02-0001[1]
Path (to the first file): totalAndFracBData/TCGA,GBM,BeadStudio,XY,TBN,NGC/HumanHap550
Total file size: 2.14 MB
RAM: 0.00MB

This has created the following data set:

totalAndFracBData/TCGA,GBM,BeadStudio,XY,TBN,NGC/
  HumanHap550/
    TCGA-02-0001-01C-01D-0184-06,fracB.asb





# - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
# Create a list of matched data sets
# - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
dsList <- list(normal=dsN, tumor=dsT, tumorN=dsTN, callsN=gsN);
rm(dsN, dsT, dsTN, gsN);
dsList <- lapply(dsList, FUN=function(ds) {
  idxs <- indexOf(ds, getNames(dsList$normal));
  extract(ds, idxs);
});

Plots

figPath <- Arguments$getWritablePath("figures");
siteTag <- getTags(ds);
siteTag <- paste(siteTag[-1], collapse=",");
print(siteTag);

[1] "BeadStudio,XY"

ugp <- getAromaUgpFile(dsList$tumor);

chromosome <- 2;
chrTag <- sprintf("Chr%02d", chromosome);
units <- getUnitsOnChromosome(ugp, chromosome=chromosome);

# Identify SNPs only
platform <- getPlatform(ugp);
if (platform == "Affymetrix") {
  require("aroma.affymetrix") || throw("Package not loaded: aroma.affymetrix");
  snpPattern <- "^SNP";
} else if (platform == "Illumina") {
  snpPattern <- "^rs[0-9]";
} else {
  throw("Unknown platform: ", platform);
}
unf <- getUnitNamesFile(ugp);
unitNames <- getUnitNames(unf, units=units);


# Identify SNP units
keep <- (regexpr(snpPattern, unitNames) != -1);
units <- units[keep];

pos <- getPositions(ugp, units=units);

# Extract Allele B fractions
kk <- 1;
dfList <- lapply(dsList, FUN=getFile, kk);
beta <- lapply(dfList, FUN=function(df) df[units,1,drop=TRUE]);
beta <- as.data.frame(beta);
beta <- as.matrix(beta);
names <- colnames(beta);
names[names == "tumorN"] <- "normalized tumor";

# Plot dimensions
x <- pos/1e6;
xlim <- range(x, na.rm=TRUE);
xlab <- "Position (Mb)";

width <- 840;
width <- 1280;
aspect <- 0.6*1/3;

Plot allele B fractions

# Plot Allele B fractions
ylim <- c(-0.05,1.05);
ylim <- c(-0.1,1.1);
ylab <- "Allele B Fraction";
cols <- as.integer(beta[,"callsN"] != 1) + 1L;

for (cc in 1:3) {
  tag <- colnames(beta)[cc];
  name <- names[cc];
  figName <- sprintf("%s,%s,%s,%s,fracB", siteTag, sampleName, tag, chrTag);
  pathname <- filePath(figPath, sprintf("%s.png", figName));
  if (!isFile(pathname)) {
    fig <- devNew("png", pathname, label=figName, width=width, height=aspect*width);
    par(mar=c(2.7,2.5,1.1,1)+0.1, tcl=-0.3, mgp=c(1.4,0.4,0), cex=2);
    par(mar=c(1.7,2.5,1.1,1)+0.1);
    plot(NA, xlim=xlim, ylim=ylim, xlab=xlab, ylab=ylab, axes=FALSE);
    axis(side=1);
    axis(side=2, at=c(0,1/2,1));
    points(x, beta[,cc], pch=".", col=cols);
    label <- sprintf("%s (%s)", sampleName, name);
    stext(side=3, pos=0, label);
    stext(side=3, pos=1, chrTag);
    devDone();
  }
}

Plot total CN

# - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
# Load raw total CN data set
# - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
rootPath <- "totalAndFracBData";
rootPath <- Arguments$getReadablePath(rootPath);
dsC <- AromaUnitTotalCnBinarySet$byName(dataSet, chipType="*", paths=rootPath);
setFullNamesTranslator(dsC, fnt);
print(dsC);
This gives:

AromaUnitTotalCnBinarySet:
Name: TCGA
Tags: GBM,BeadStudio,XY
Full name: TCGA,GBM,BeadStudio,XY
Number of files: 2
Names: TCGA-02-0001, TCGA-02-0001 [2]
Path (to the first file): totalAndFracBData/TCGA,GBM,BeadStudio,XY/HumanHap550
Total file size: 4.28 MB
RAM: 0.00MB
pairC <- indexOf(dsC, sampleName);
stopifnot(length(pairC) == 2);

# Order as (tumor,normal)
types <- sapply(extract(dsC, pairC), FUN=function(df) getTags(df)[1]);
o <- order(types);
types <- types[o];
pairC <- pairC[o];

# Extract (tumor, normal) pair
dsPairC <- extract(dsC, pairC);

# Extract total CNs
C <- extractMatrix(dsPairC, units=units);
C <- 2*C[,1]/C[,2];

# Plot total CNs
ylim <- c(0,6);
ylab <- "Copy number";
figName <- sprintf("%s,%s,%s,CN", siteTag, sampleName, chrTag);
pathname <- filePath(figPath, sprintf("%s.png", figName));
if (!isFile(pathname)) {
  fig <- devNew("png", pathname, label=figName, width=width, height=aspect*width);
  par(mar=c(2.7,2.5,1.1,1)+0.1, tcl=-0.3, mgp=c(1.4,0.4,0), cex=2);
  par(mar=c(1.7,2.5,1.1,1)+0.1);
  plot(NA, xlim=xlim, ylim=ylim, xlab=xlab, ylab=ylab, axes=FALSE);
  axis(side=1);
  axis(side=2, at=c(0,2,4,6));
  points(x, C, pch=".");
  label <- sprintf("%s", sampleName);
  stext(side=3, pos=0, label);
  stext(side=3, pos=1, chrTag);
  devDone();
}

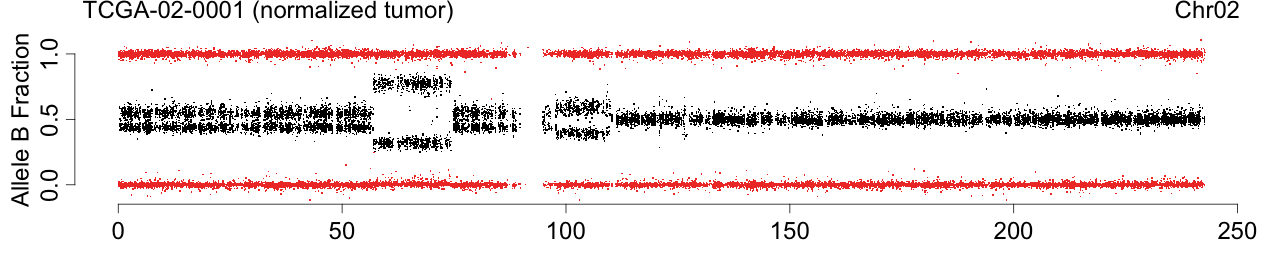

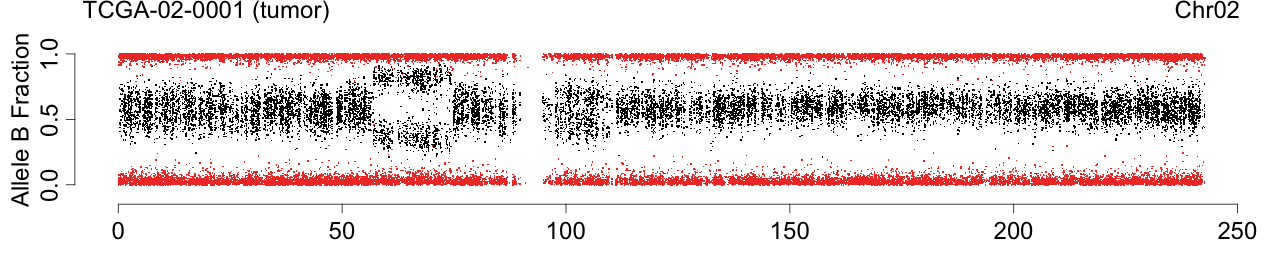

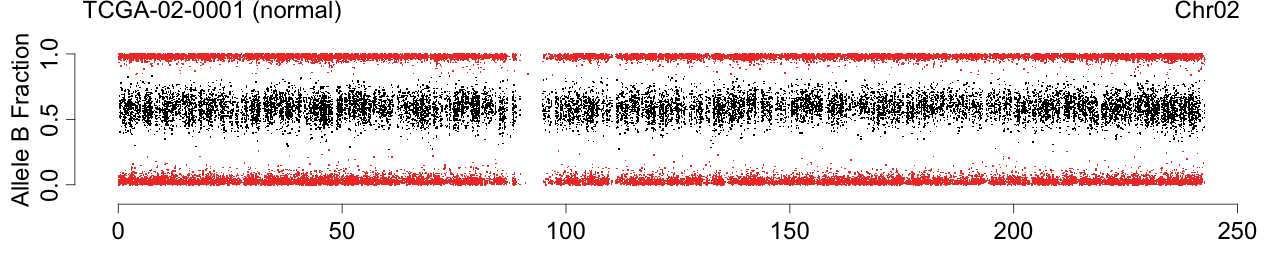

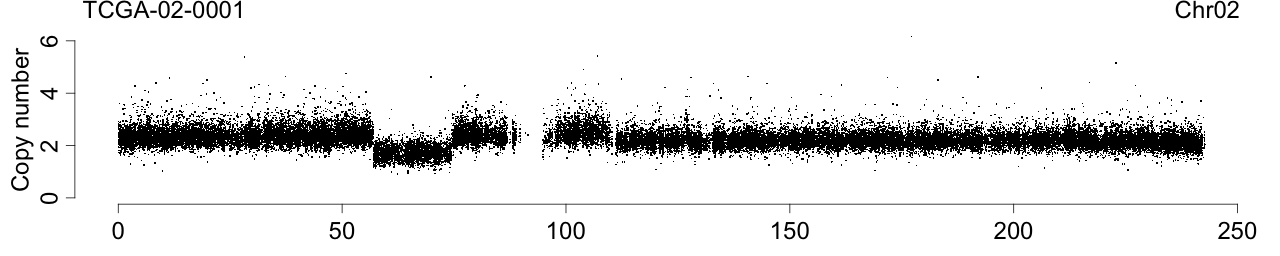

The images generated above are reproduced in Figure 1.




Figure 1. Total copy numbers (top panel), Allele B fractions in the normal (second panel), in the tumor (third panel), and in the normalized tumor (bottom panel).  Data are from the Illumina HumanHap550 platform, preprocessed with BeadStudio (method "XY", not "BAF").
